TCAREAMDNR - Make Area field in W/O Non Routine Task Card Mandatory

MANUALS > Engineering > Engineering Switches > TCAREAMDNR - Make Area field in W/O Non Routine Task Card Mandatory

TCAREAMDNR - Make Area field in W/O Non Routine Task Card Mandatory

Make Area field in W/O Non Routine Task Card Mandatory

Affected Window: w_wo_task_card_non_routine_eu

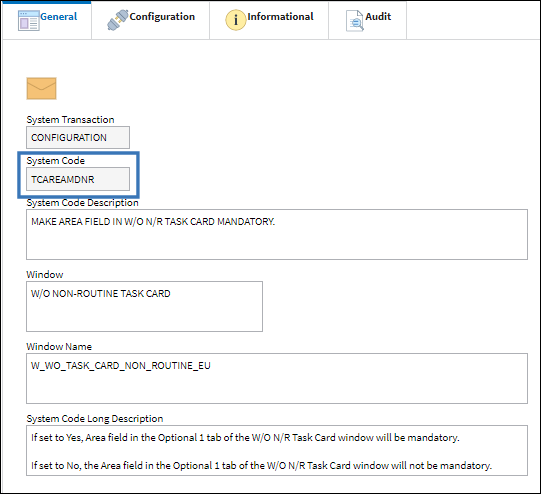

eMRO-TCAREAMDNR - Code

Switch Set to Yes:

When set to Yes, the Area field in the Optional 1 tab of the W/O Non Routine Task Card window is mandatory.

eMRO_Engineering_Yes

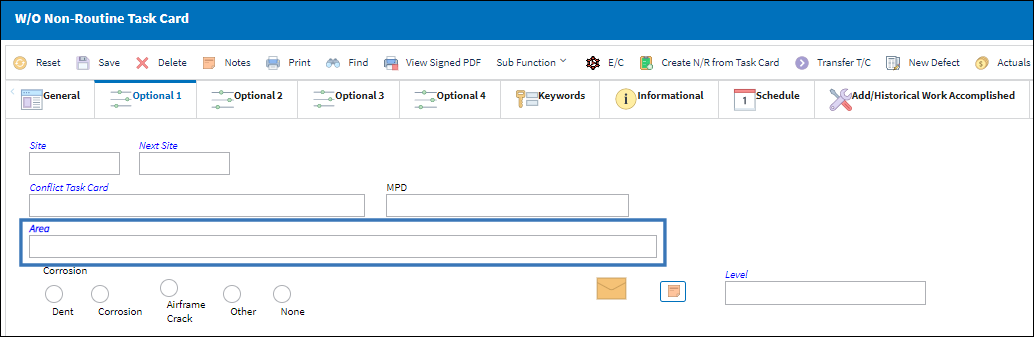

The following W/O Non-Routine Task Card is being created. Notice the Area field of the Optional 1 tab is mandatory.

eMRO-TCAREAMDNR - Yes

Switch set to No:

When set to No, the Area field in the Optional 1 tab of the W/O Non Routine Task Card is not mandatory.

eMRO_Engineering_No

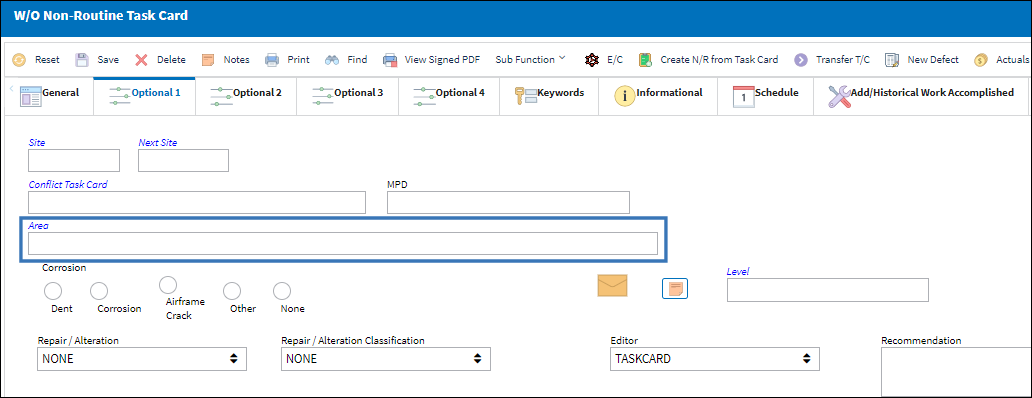

The following W/O Non-Routine Task Card is being created. Notice the Area field in the Optional 1 tab is not mandatory.

eMRO-TCAREAMDNR - No
