SDR Status
The System Transaction Codes are displayed with both the Code Names and Descriptions. The Code Descriptions directly illustrate their functionality and role in the system, as fields are populated and tasks are performed.
Transaction Code |
SDR Status |
General Description |
To define SDR Status Codes |
Are Authorization Steps Available |
N |
Is System Notification Available |
Y |
Trax Control Panel Path(s): |
Technical Records/ Update/ Defect Report/ SDR button |
Windows(s): |
w_sdr |
Related Switch(s) |
None |
Functions: |
Allow codes to be applied to SDR Reports |
Reports: |
SDR |
Available Functionality:
A system Generated notification is sent when a new SDR Status is created, saved or deleted.

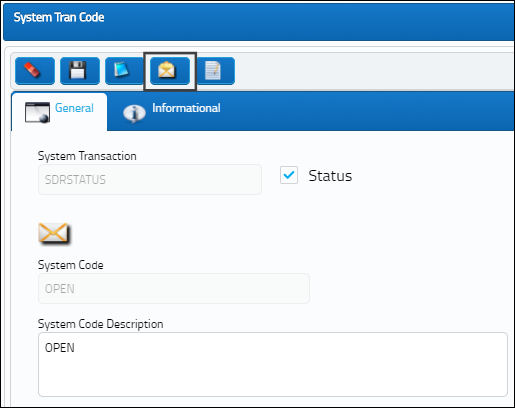

Select the System Notification
button.
The following information/options are available in this window:
_____________________________________________________________________________________
System Notification button
Select this button to set up a system generated notification regarding the specified transaction code. For information on how to set up System Notifications, refer to Setup - System Notification, via System Notifications of the Settings Training Manual.
_____________________________________________________________________________________

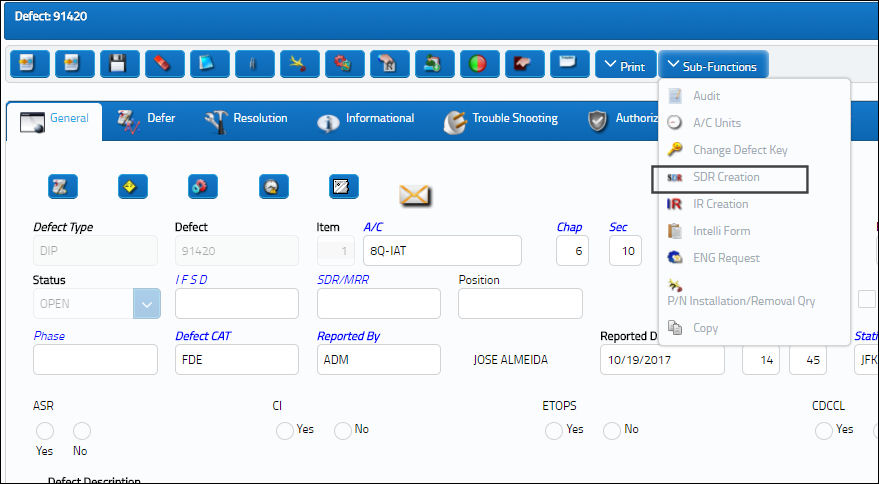

From the following Open defect, select the SDR Creation
button.

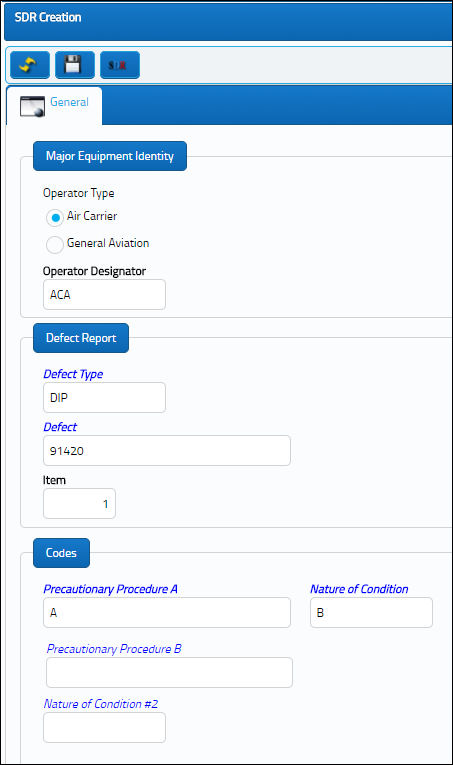

The SDR Creation Window is shown. Populate all mandatory field information save the record. Select the Generate SDR button.

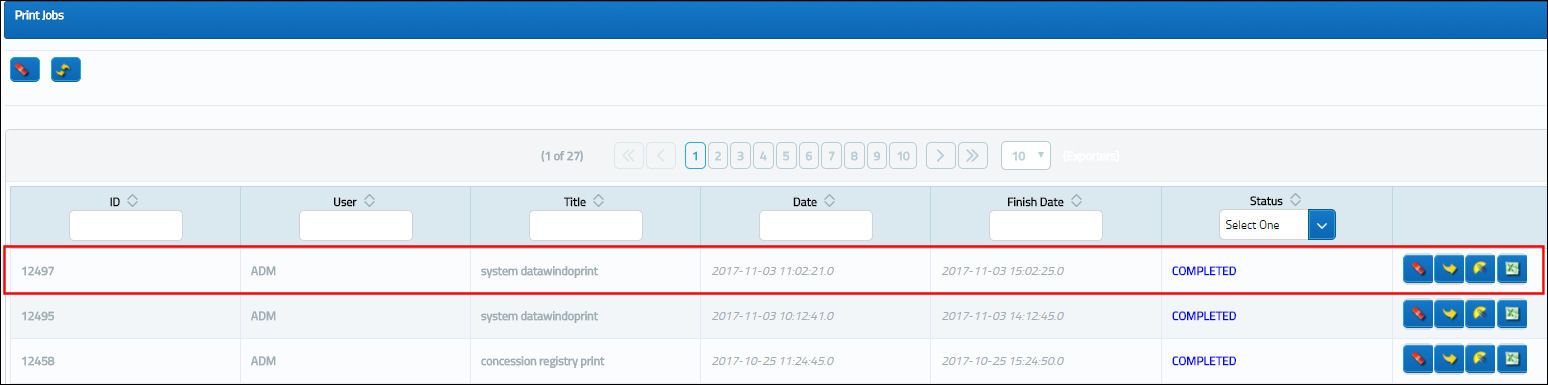

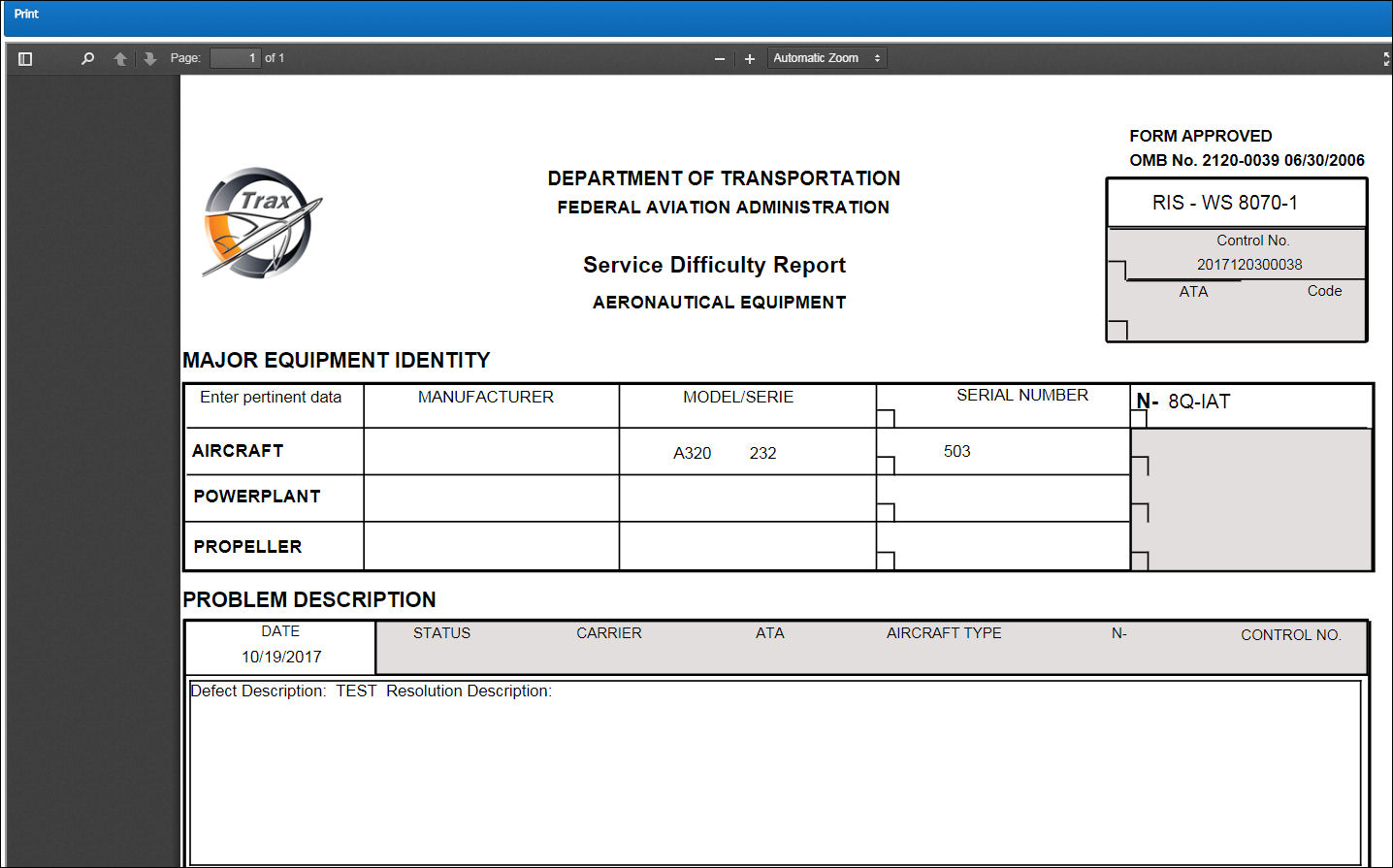

The report is generated and sent to the Print Queue.
A notification is then sent to the creator of the SRD Report via email.
