The tool should be properly set up in the P/N Master. Go to Settings/Update/P/N Master. Select a part number to edit or create a new one by clicking on the New button. Here we will confirm that the tool is set up properly for the Tools Locator functionality to work correctly. The Tool Calibration checkbox must be checked on the part for proper functionality.

Note: For more information, refer to the P/N Master of the Settings Training Manual.

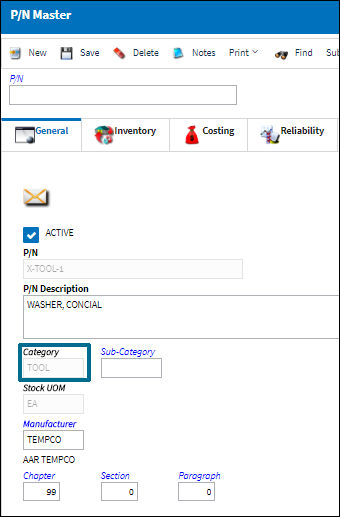

The system displays the following P/N Master Screen with Tools as the selection for Category:

The following information/options are available in this window:
_____________________________________________________________________________________

Active checkbox

Select this checkbox if the tool is active.

P/N

The Part Number reference for the aircraft part.

P/N Description

The description of the part.

Category

The category of the tool should be selected here. Nevertheless, the flag set here does not influence the tool functionalities throughout the system. Parts that are marked as tools in the Inventory tab will be considered as tools throughout the system no matter what the part category is.

Sub-Category

The sub-category of the tool.

Stock UOM

Stock unit of measure.

Manufacturer

The manufacturer's code and name.

Chapter/Section/Paragraph

The ATA chapter/section/paragraph, as applicable.

_____________________________________________________________________________________

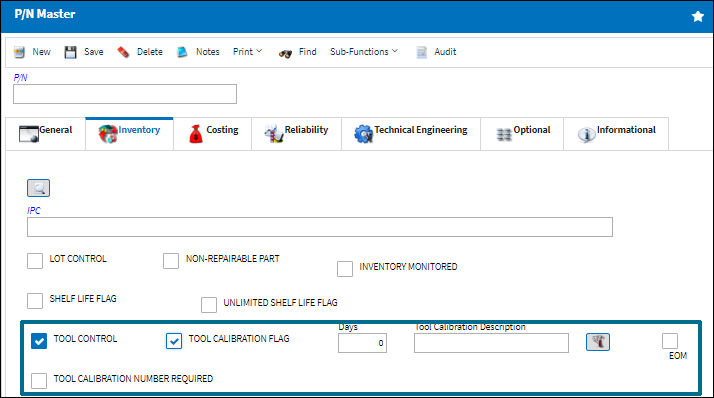

Next, select the Inventory Tab in the P/N Master, as seen in the following window:

The following information/options are available in this window:
_____________________________________________________________________________________

Tool Control checkbox

In Order for the Tools Check-In and Check-Out functionality (via Inventory/ Update/ Inventory Transaction) to work correctly, this must be checked to indicate the part is a tool.
The Tool Calibration checkbox, which indicates whether the tool requires calibration, will appear once the Tool Control checkbox has been checked. Users can set the number of calibration days in the Days field. These two checkboxes allow reports (via Inventory/ Prints) to be generated to track tools' issuance and calibration (with calibration task description) as required.

Note: The Tool Control checkbox cannot be deselected for tools that are already checked out. If the user tries to do so, the following error will appear:

Tool Calibration Flag checkbox

Check this box to indicate that this Tool requires calibration. This checkbox is only available when the Tool Control checkbox is selected.

This checkbox is security controlled via Settings/ Update/ P/N Master. Although the checkbox may be visible, the user will be unable to select/deselect it without the appropriate security access. For additional information, refer to the Security Explorer via the System Administration Training Manual.

Tool Calibration Number Required checkbox

Select this checkbox to activate the Tool Calibration Number field when a Tool is received. When this checkbox is selected, the Tool Number field will be available via Receiving Inspection and all Inventory related windows. This checkbox is only available when the Tool Control checkbox is selected. For additional information regarding the Tool Calibration Number, refer to Repair Order Receiving, General tab, via the Receiving Training Manual.

This checkbox is security controlled via Settings/ Update/ P/N Master. Although the checkbox may be visible, the user will be unable to select/deselect it without the appropriate security access. For additional information, refer to the Security Explorer via the System Administration Training Manual.

Days

Enter the number of default days. The number of days entered will be applied to parts received as their standard shelf life. The date can be amended at that time also. Specify the number of days between calibration. A free field allows to enter any kind of information related to the calibration. This field and the description field to its right appears when the Tool Calibration checkbox is selected. Enter further details about the Days in the next available text field.

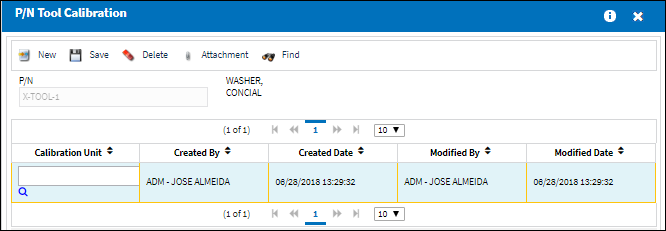

P/N Tool Calibration button

Click this button to open a pop-up window that allows you to enter several calibration intervals.

_____________________________________________________________________________________

Note: These checkboxes allow reports (via Inventory/Prints) to be generated to track tools’ issuance and calibration (with calibration task description) as required.

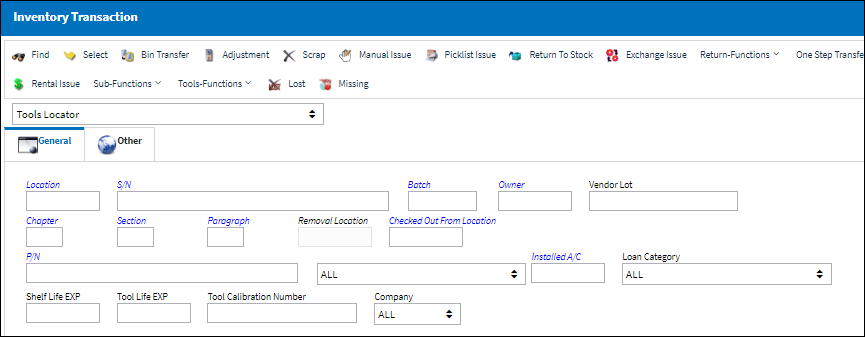

In Inventory/Update/Inventory Transaction, select Tools Locator from the Transaction Type drop-down menu, as displayed below:

As with the majority of the query selections on the system, it is better to select as many parameters as required to minimize your search result.

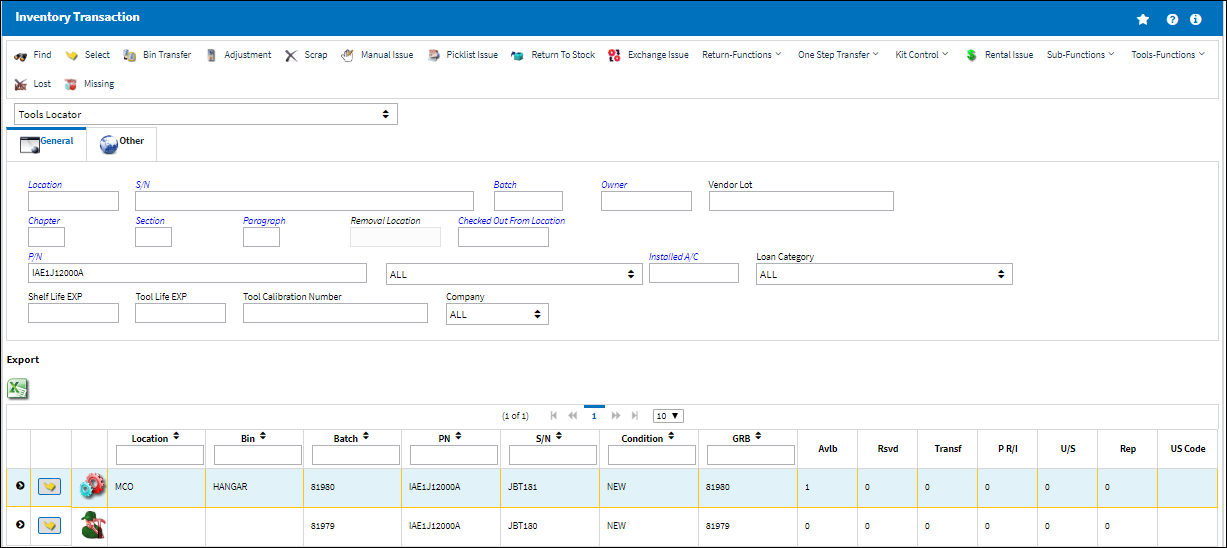

Once you have selected the criteria, click on the Find button. The system displays your search results, as follows:

Choose the record with which you want to work by clicking on the record.
You can check the tool out of inventory or check it back into inventory (once it has been checked out).
