Engineering Compliance, General Tab

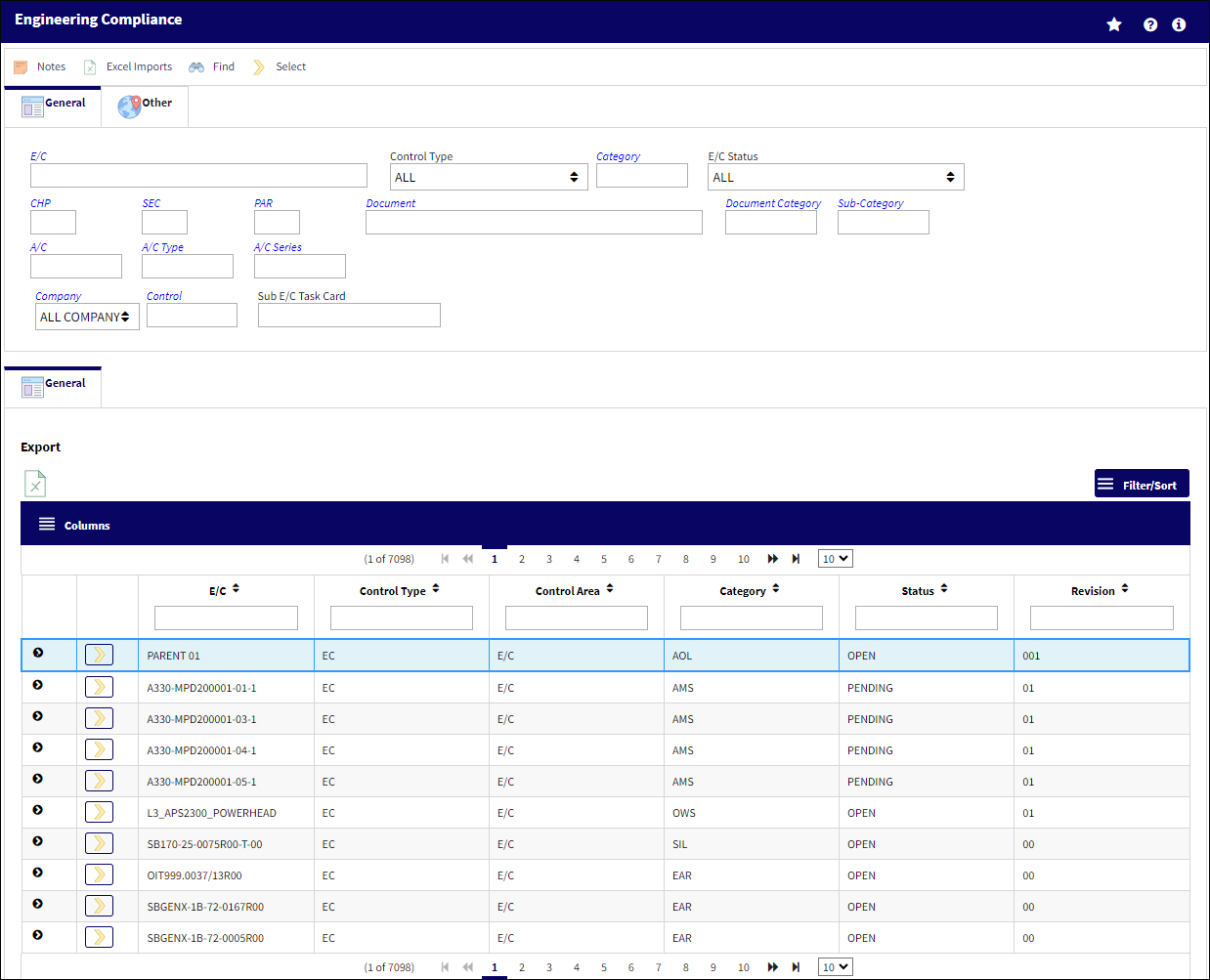

The Engineering Compliance General tab is used to query for Engineering Controls. Enter any of the below search criteria and select the Find button. Once the desired E/C has been located, select the Select button.

The following information/options are available in this window:
_____________________________________________________________________________________

E/C

The Engineering Control that specifies aircraft or component scheduled maintenance intervals.

Control Type

The Engineering Control Type (E/C or Task Card).

Category

The category of the E/C (e.g., AD, SB, CHECK).

E/C Status

The status of the E/C. When creating a new E/C the initial status will default to Pending; if the user requires to hold this E/C until ready it can be left as Pending, or alternatively it can be changed to another status.

When an E/C Status is changed, the status, in most cases, cascades down to the E/C effective items. For more information refer to E/C Status Cascade Functionality via the Engineering - E/C Training Manual.

The following Status options are available:

Applicable/Not Embody - The E/C is applicable to an A/C Type/Series or Part Number, but may not be mandatory. This status allows the E/C to be entered in the system, but does not require compliance.

Cancel - The E/C has been cancelled.

N/A - The originating document (AD, SB, MOD, etc.) has been evaluated and is deemed not effective to a specific A/C or P/N.

Open - The E/C is Open.

Pending - This is the default status. This will be the status until the E/C is authorized. If the user requires holding this E/C until ready, it can be left as Pending even after the record has been saved. Once the E/C is authorized the status will show as Open.

Rejected - The E/C was rejected or not authorized and may need to be sent back through the authorization process for revision. This status should not be selected manually.

Terminated - The E/C is no longer in use. It has either been complied with for all effective aircraft or components, or the action of another E/C has terminated it. When an E/C is terminated, the termination applies to the entire fleet. This status should not be selected manually.

Chapter / Section / Paragraph

The ATA chapter/section/paragraph, as applicable.

Document

The document reference number associated to the E/C.

Document Category

The document category code for the document reference associated to the E/C.

Sub-Category

A Sub Category can be used to further define the E/C Category, if applicable. For example, users may want to classify their ADs for Engines, APUs, and Landing Gear separately. The Sub Category System Transaction Code is set up via Settings/ Explorer/ System Transaction Code/ Engineering.

A/C

The individual aircraft tail number.

A/C Type

The aircraft type the E/C is effective to.

A/C Series

The aircraft series the E/C is effective to.

Company

The name of the airline company for which the E/C will be utilized. Select 'ALL' to query for E/Cs that are not linked to a specific company; select 'All Company' to include any E/Cs regardless of their company.

Note: This field defaults to 'All Company'.

Note: For more information, refer to the Multi Company Functionality.

Control

The Control (A/C, P/N, A/C Type, or ALL) used to auto generate the E/C reference. This field is used for naming purposes only. When the 'ALL' option is selected the E/C Control field will not auto generate the E/C reference. The E/C reference will auto generate from the Sub E/C field.

Sub E/C Task Card

Enter the associated Sub E/C Task Card.

EO Effectivity Category drop down

The EO Effectivity Category drop down is used to filter the search results based on the effectivity status of the Engineering Control. The following options are available in this drop down:

ALL - Select ALL to query for Engineering Controls that are effective to component(s), aircraft(s), or both.

PN/EC - Select PN/EC to only query for Engineering Controls that are component effective.

AC/EC - Select AC/EC to only query for Engineering Controls that are aircraft effective.

_____________________________________________________________________________________

The Export as Excel button can be selected to view the queried data (including all pages) in an Excel spreadsheet. This Excel file can be saved for later use. For more information refer to the Export as Excel Button via the eMRO System Standards manual.

The Columns button is used to select which columns will appear in the the window's search results/table section. For more information, refer to Columns Button via the eMRO System Standards manual.

The Filter/Sort button is used to alter the search criteria for records associated with the host module and window. For more information, refer to Filter/Sort Button via the eMRO System Standards Module.
