MANUALS > TraxDoc > TraxDoc Module > TraxDoc, Update Menu > TraxDoc Master > TraxDoc Document Detail > TraxDoc Document Detail, Metadata Tab

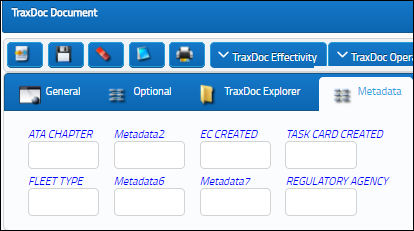

The Metadata Tab contains optional informational MetaFields that are defined by your organization. They are set up by eMRO Administrators or Advanced eMRO Users. The MetaFields are created in the System Transaction Configuration and the field’s contents are defined in the System Transaction Codes. Up to 8 MetaFields are available. If none of the MetaFields are defined this tab will contain a blank page. The Meta Fields are used to add additional optional information to a TraxDoc Document. The Meta Fields can also be used for searches in the TraxDoc Database and are also available in the TraxDoc Query.

Enter/verify the following information.

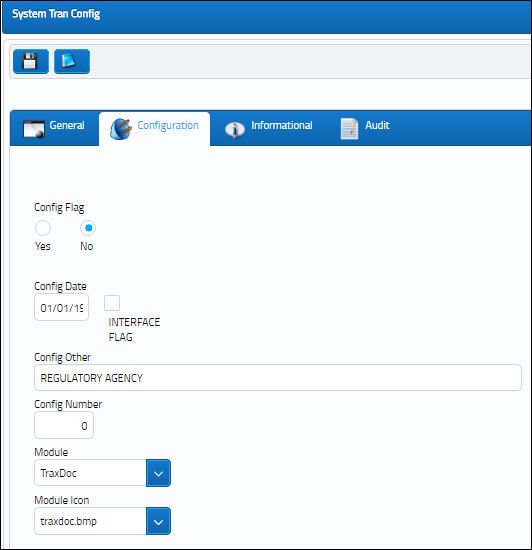

Create a TraxDoc MetaField. Go to System Administration/Explorer/System Transaction Configuration/TraxDoc. Select into a Metafield and select ‘Update Record.' Go to the Configuration Tab. Enter the name of the field in the Config Other Field.

Create Transaction Codes for the Metafield. Go to Settings/Explorer System Transaction Code/TraxDoc. Select into any TraxDoc MetaField and click Update.

The following information/options are available in this window:
_____________________________________________________________________________________

System Code

Enter a name for the code (maximum 10 characters).

Note: It is recommended that you choose a name, abbreviation, or acronym that reflects the code.

System Code Description

Enter a description of the category or the full name of the code.

_____________________________________________________________________________________

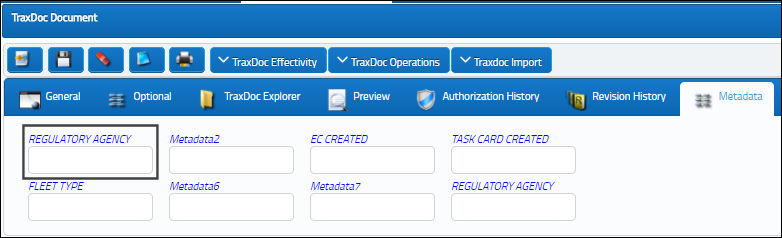

The MetaFields are now available in the TraxDoc Document on the Metadata Tab.

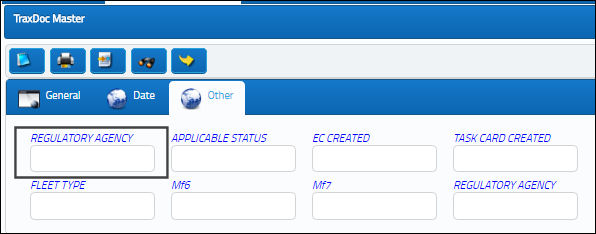

The MetaFields are also available for TraxDoc Queries.
