W/O Print

The W/O Print allows the user to query Work Orders and print the results.

This button is security controlled via Production/ Print/ W/O Pack Print/ Task Card Button. For more information refer to the Security Explorer via the System Administration Training Manual.

Note: The W/O Man Hours Summary Report has been added to eMRO.

Note: The Task Card, Remove & Installation, and Parts Usage Reports have been added to eMRO.

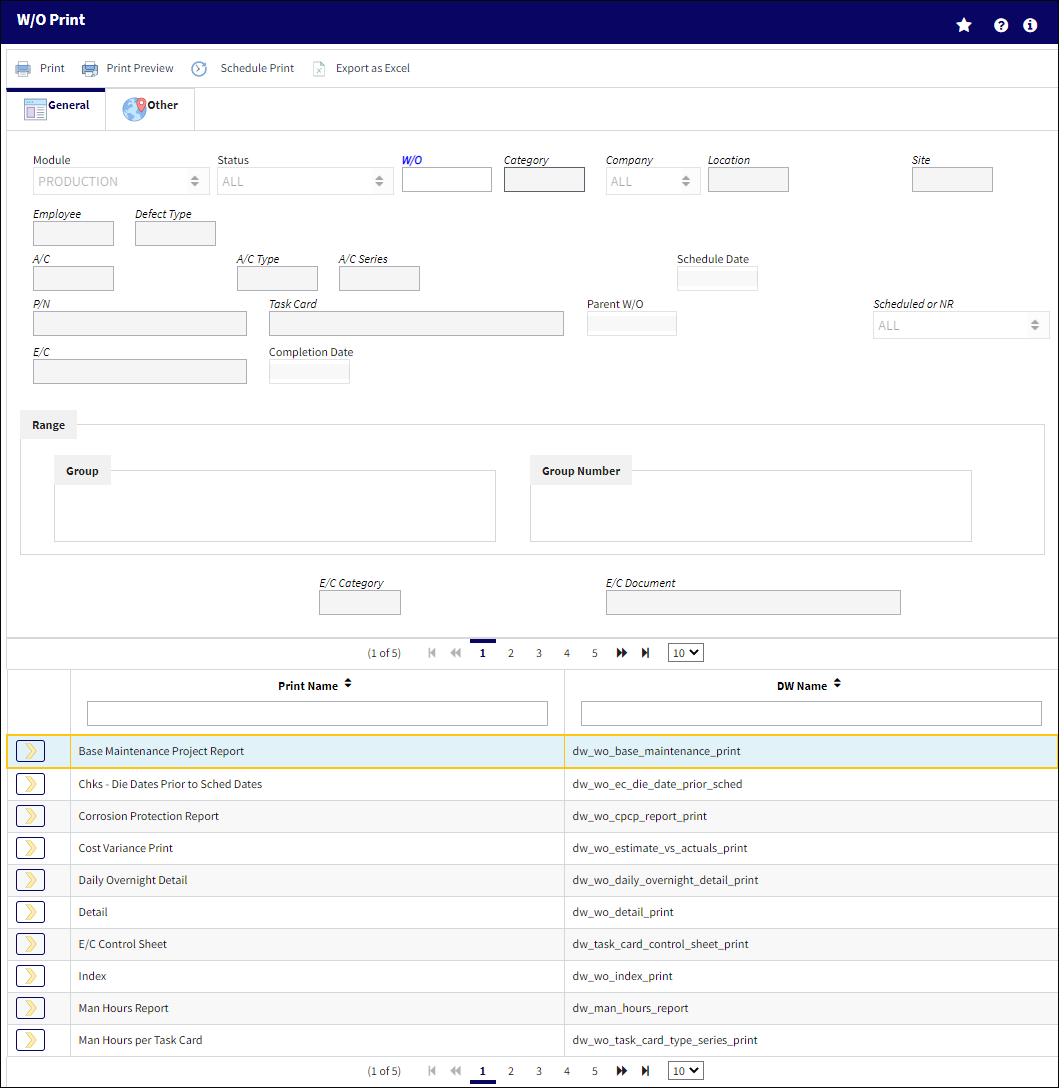

The following information/options are available in this window:
_____________________________________________________________________________________

Module

The module where the Work Orders exist. The options are either Production or Shop. Shop W/Os would be searched for in the Shop module. This field defaults to the module the window was accessed through; only W/Os for that module can be searched for.

Status

The status of the Work Order.

W/O

The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.

Category

Work Order Category code.

Company

The company the Work Order was created for.

Location

The Location for maintenance events, inventory stores, orders, transactions, or training events.

Site

The Site where the work should be carried out (if applicable).

Employee

The employee performing the task.

Defect Type

The type of defect found on the aircraft (for example, Pilot Report, MX Report).

A/C

The individual aircraft tail number.

A/C Type

The type of aircraft.

A/C Series

The entire Aircraft Series.

Schedule Date

The schedule date for the Work Order.

P/N

The Part Number reference for the aircraft part.

Task Card

The Task Card / Job Card that details the scheduled maintenance work.

Parent W/O

If this Production W/O acts as a “child” to a parent Production W/O, that parent Production W/O should appear here.

Scheduled or NR

Select if the related Task Card is Scheduled or Non-Routine.

E/C

The Engineering Control that specifies aircraft or component scheduled maintenance intervals.

Completion Date

The date the Work Order was completed.

E/C Category

The Category of the E/C.

E/C Document

The selected E/C to which document association is to be made to.

_____________________________________________________________________________________

 Select the Print button to print a Work Order.

Select the Print Preview button to preview the print of the Work Order.

Select the Schedule Print button to schedule a print of the Work Order.

The Export as Excel button can be selected to view the queried data (including all pages) in an Excel spreadsheet. This Excel file can be saved for later use. For more information refer to the Export as Excel Button via the eMRO System Standards manual.

Note: The Export as Excel print functionality is security controlled via System Administration/Update/Logged In Session/Excel Export Functionality. For more information, refer to the Security Explorer via the System Administration Training manual.
